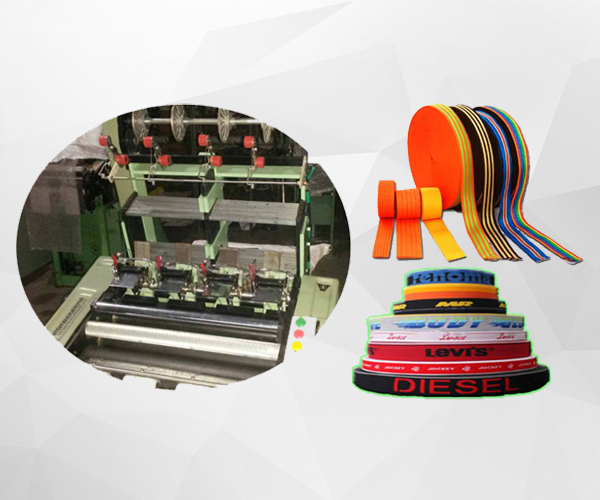

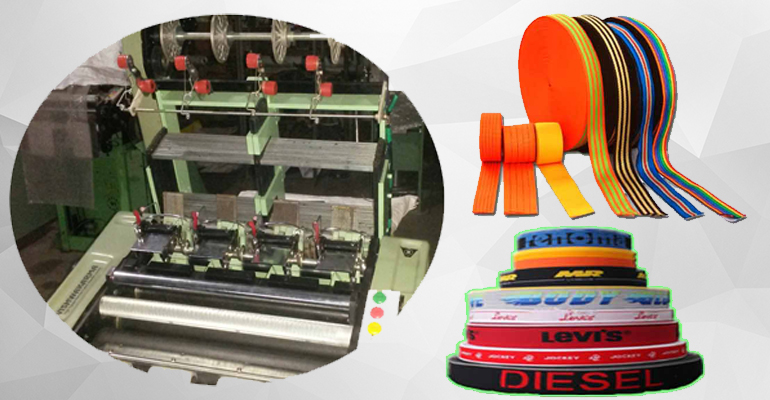

Army Webbing Belt Machine
Army Webbing Belt Machine
VISHWAKARMA High Speed Needle Loom, we can make machines as clients' requirement as elastic lace or non-elastic lace. For example, slide lace, ribbon, bag belt, life belt, bandage, and so on. This machine is safe and easy to operate and maintain. With the specialization of high speed, low noice, steady and high efficient.
Main Parameters :
1. Machine is specially designed for heavy duty belts & Webbings.
2. Four stage heavy knurled take off rollers to prevent from slippage even at heavy tension.
3. Sturdy and balanced design gives smooth & noise less working.
4. Machine runs continuously without stoppages; hence wastage is negligible.
5. Auto stop motion for any yarn breakages in weft and catch threads.
6. Electromagnetic brake for instant stop.
7. Easy weaving setting.
8. Shedding shaft 16 set with Heald frames.
9. Automatic centralized lubrication systems.
SPECIFICATION (Jumbo Model) :
| MODEL | Vi 4/80 | Vi Gold 6/55 | Vi Gold 2/110 |
|---|---|---|---|
| Nos. of tapes ( Heads ) | 4 | 6 | 2 |
| Max. reed width in mm | 75 | 50 | 110 |
| Max. nos. of heald frames | 8 | 10 | 6 |
| Shedding motion by | Chain | Chain | Chain |
| Pick repeats | 8-48 | 8-48 | 8-48 |
| Elect. Motor ( A.C. 3 PH.) | 1 H.P | 1 H.P | 1 H.P |
