High Speed Needle Loom Machine
High Speed Needle Loom Machine
We wish to introduce ourselves as a leading manufacturer of machinery required for narrow fabrics elastic as well as rigid tape. The machines includes High Speed Needle Loom, Warping machine, Creel for warping machine, Tape finishing machine, Measuring & winding machine ,Aluminum Beam etc.

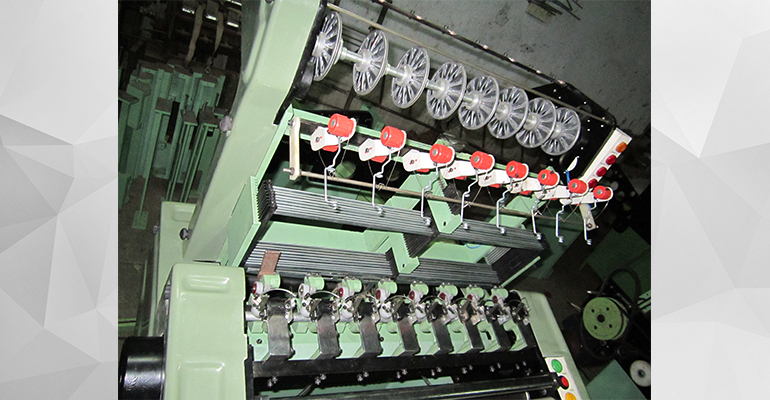

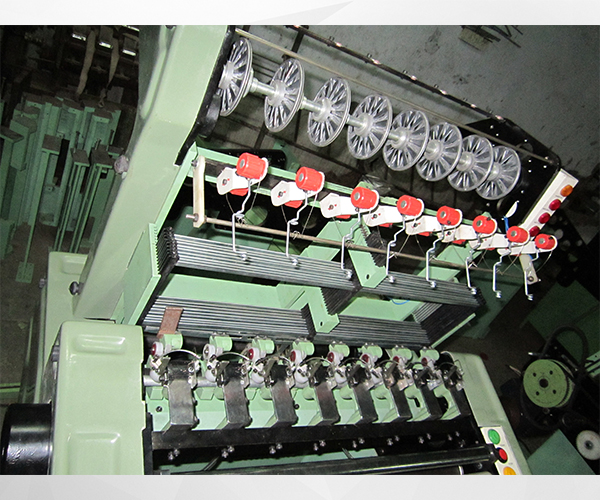

Vishwakarma Needle Loom
Our machines are sturdy and balanced design structure. The machines are supplied in different models. Fabric width wise from 5 mm to 175 mm and nos. of tape 2 to 20 nos. according to width of fabric. All general features like electromagnetic brake, auto stop motion for warp and weft, lock thread weaving systems are provided in our all models.
SPECIFICATION AND FEATURES :
1. Tool Box
2. Beam Stand
3. Change Gear Set
SPECIFICATION AND FEATURES :
| Model | 4/55 | 4/65 | 6/55 | 8/35 | 8/45 | 10/35 | 2/110 | 2/175 |
|---|---|---|---|---|---|---|---|---|
| Nos. of tapes ( Heads ) | 4 | 46 | 6 | 8 | 8 | 10 | 2 | 2 |
| Max. reed width in mm | 50 | 65 | 50 | 32 | 42 | 32 | 100 | 160 |
| Electric Motor 1 H.P. ( A.C. 3 Phase Or Single Phase) | ||||||||
| Electromagnetic Brake | ||||||||
| Weft yarn feed attachment with capstone device | ||||||||
| Easy weaving setting | ||||||||
| Shedding Shaft 12 set with haled frames | ||||||||
| Auto stop motion for any yarn breakages in warp, weft and catch threads | ||||||||
| Fault indicators for any yarn breakages in warp, weft and catch threads | ||||||||
| Automatic Centralized lubrication system | ||||||||
| Variable motor pulley for different speeds | ||||||||
Product Gallery
