Elastic Name Tape Plain Tape Machine
Elastic Name Tape-Plain Tape Machine
We wish to introduce ourselves as a leading manufacturer of machinery required for narrow fabrics elastic as well as rigid tape. The machines includes High Speed Needle Loom, Warping machine, Creel for warping machine, Tape finishing machine, Measuring & winding machine ,Aluminum Beam etc.

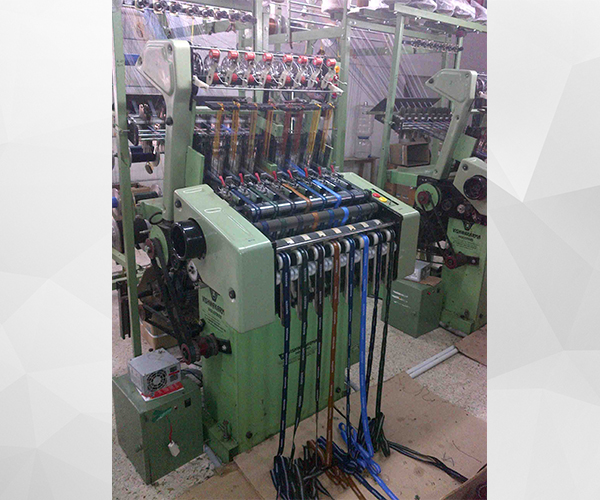

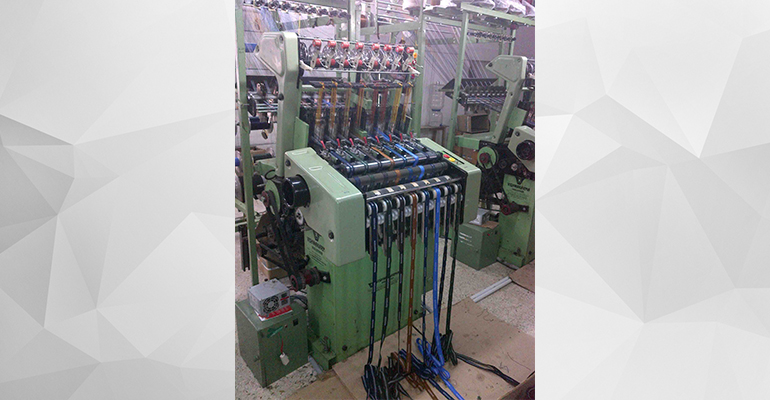

Vishwakarma Needle Loom :
Our machines are sturdy and balanced design structure. The machines are supplied in different models. Fabric width wise from 5 mm to 175 mm and nos. of tape 2 to 20 nos. according to width of fabric. All general features like electromagnetic brake, auto stop motion for warp and weft, lock thread weaving systems are provided in our all models.
High speed needle loom with High-performance and specially designed for weaving
Main Parameters :
1. High speed and stable operation, reach 1,200 R.P.M.
2. Pick-up needle number needle, offers a variety of specifications chooses to use.
3. 6/55 add heavy base, high yield, the production of ribbon good quality.
4. Carry arm type structure, durable.
5. Transmission by synchronous belt with loom is linked together, accurate and reliable.
SPECIFICATION AND FEATURES :
| MODEL | 2/110 | 4/65 | 6/45 | 6/55 | 8/35 | 10/35 |
|---|---|---|---|---|---|---|
| TAPES | 2 | 4 | 6 | 6 | 8 | 10 |
| WIDTH OF TAPES | 110 | 65 | 45 | 55 | 32 | 32 |
| MOTOR | 1 HP Three Phase 960 RPM Motor. | |||||
| SPEED | 1400 RPM | |||||
| HEALD FRAME | 14-16 PCS | |||||
| DESIGN CHAIN CIRCLE | 8-48 | |||||
| WEFT DENSITY | 3.5-36.7 WEFT/CM | |||||
Product Gallery
