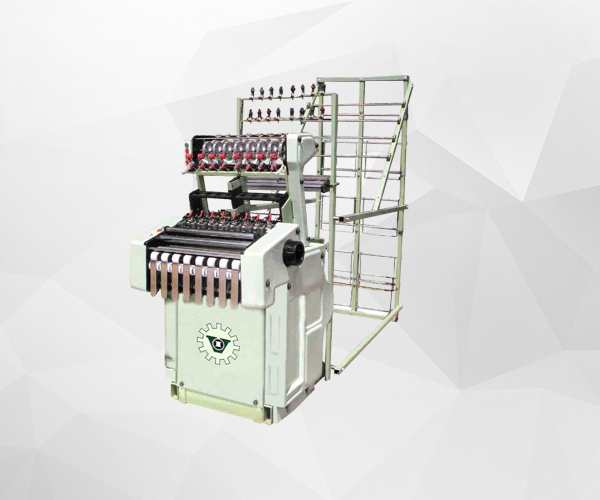

Needle Loom Machine

Vishwakarma Industries is the most preferred brand across the globe for Needle loom Machines & its Accessories catering to the widest range of Industries and Applications. Our persistent commitment to Quality, well-equipped Manufacturing Facilities, focuses on Research and Development and understanding of customer needs have of both stranding and closing. We are providing such kind of machinery in which Polyester Webbing Machine, Safety Belts, Ratchet Belt webbing, Lifting Belts etc.

Vishwakarma Industries Manufacturer of Narrow Fabric Machinery. Specially For Heavy Polyester Sling Belt, Safety Belts, Ratchet Belt Etc.

Polyester Sling Belts width wise from 25 mm to 60 mm and nos. of tape 4 nos. according to width of fabric. Max. Heald frame are 12 nos. which is enough for general weaves used in elastic as well as rigid tapes. That gives sufficient space for smooth working. All general features like electromagnetic brake, auto stop motion for warp and weft, lock thread weaving systems are provided in our all models. Particular type of creel required for elastic tape can be supplied on request. Our standard supply includes system for warp supply through beams.

Specification :

1. No. Belts Line- Four (4) Heads Width of Maximum 60 M.M

2. Electric Motor 2 H.P, Variable Frequency Drive

3. Electromagnetic Brake.

4. Easy weaving setting.

5. Shedding Shaft 12 set with Heald frames.

6. Auto stop motion for any yarn breakages in warp, weft and catch threads.

7. Fault indicators for any yarn breakages in warp, weft and catch threads.

8. Automatic Centralized lubrication system.

9. Variable motor pulley for different speeds.
